Toyota 20R & 22R | Weber Carburettor Adapter Plate

Toyota 20R & 22R | Weber Carburettor Adapter Plate

$165.00

MPN:9900422200

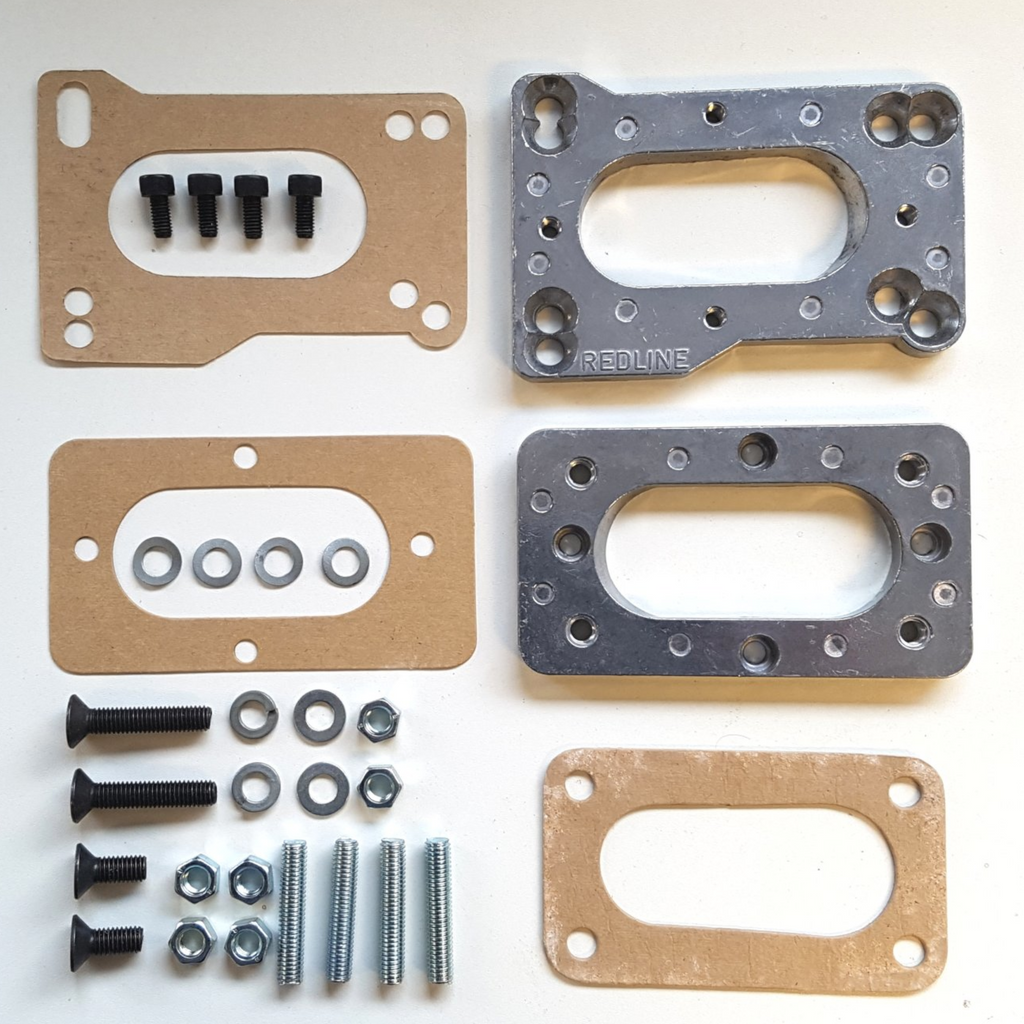

Adaptor plate to allow fitment of the Weber 32/36DGV/DGAV and 38DGMS/DGAS
Carburettor to the Toyota 20R and 22R engines.

Comes with required gaskets, studs, bolts, nuts.

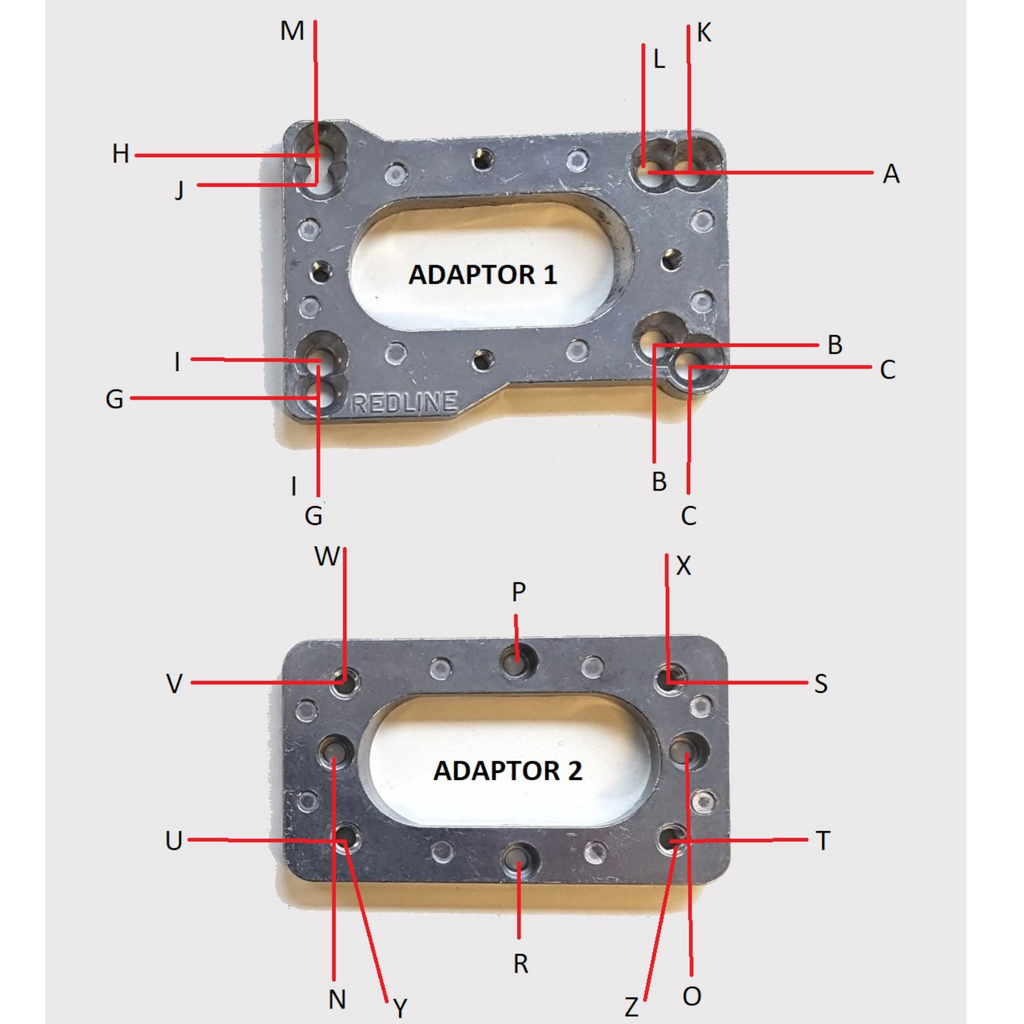

Dimensions of Adaptor A (see photo)

A to B = 50mm

A to C = 55mm

B to I = 96mm

C to G = 106mm

I to J = 50mm

G to H – 68mm

K to M = 106mm

L to M = 96mm



Dimensions of Adaptor B (see photo)

W to X = 93mm

P to R = 58mm

S to T = 45mm

U to V = 45mm
Genuine & Authentic Weber Product

This is a genuine Weber carburettor manufactured in Europe under licence using original Weber specifications.
